1805A USB Controlled 5 Channel High Current Switch

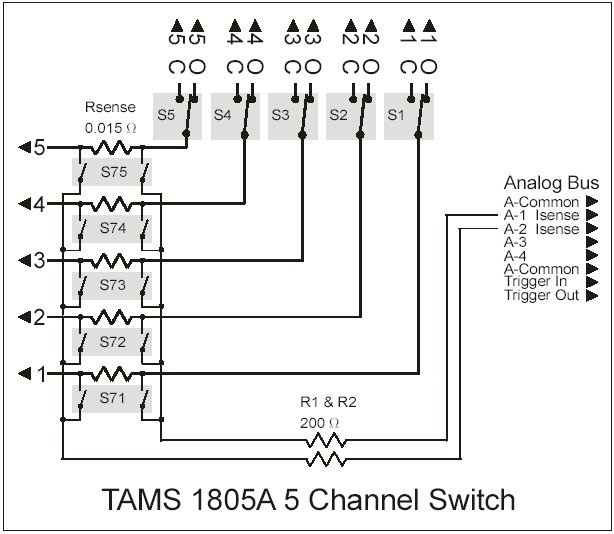

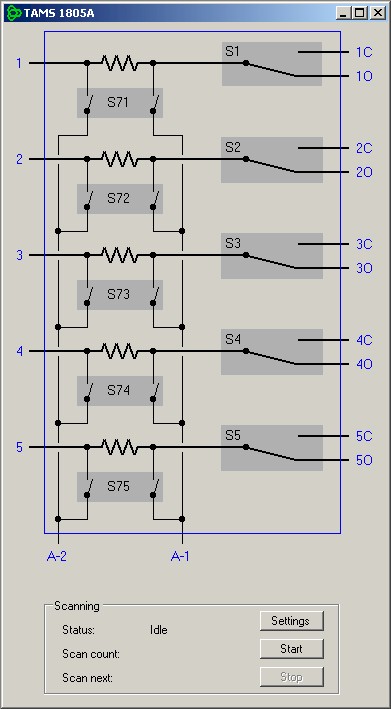

The TAMS 1805A consists of 5 SPDT relays with all connections brought to terminals for maximum flexibility.  Switch functions are easily controlled through the programmable graphical user interface.


System Requirements:

  • Windows 2000 or Windows XP
  • Microsoft Internet Explorer version 5.01 or later.
  • Microsoft .NET Framework version 1.1
  • National Instruments VISA library or Agilent Technologies IO Libaries Version M or later.
USB versions: 2.0 and 1.1 Full speed
USB connection: USB "B" type connector
USB current consumption: 150mA maximum
Switched voltage and current:
100VAC maximum
30VDC maximum
8 Amps maximum
Switched power:
800VA max AC
240W max DC
Current measurement: Rsense = 0.015 Ohms, +- 1 %
Total Contact Resistance: 60mOhms initial, typical
Switching speed, scan list: 50 steps per second, maximum
Screw terminal wire: AWG 28 – 16
Screw terminal torque: 0.22 – 0.25 Nm
Documentation & Downloads:



P/N Price

Description
1805A EUR 625.00 USB controlled 5 channel high current switch.
Includes 1805A Module, USB Cable, (3) 1827732 Phoenix Connectors, Analog Bus Cable, Software & Documentation
