1813A USB Controlled 13 Channel Multiplexer

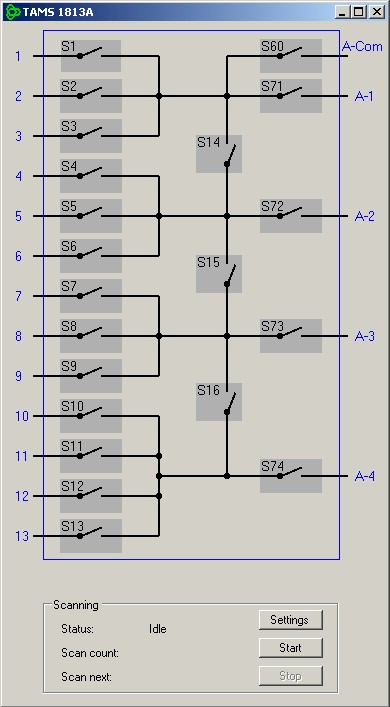

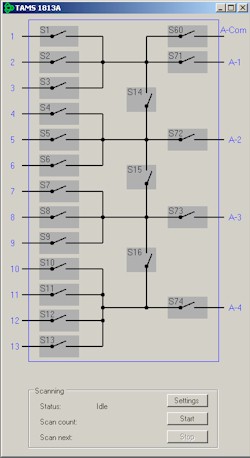

The multiplexer allows consolidation of 13 signals down to a 4 wire Analog Bus. The mulitplexer itself is composed of four smaller multiplexers. These smaller multiplexers can be used in isolation or combination through the configuration relays 14, 15, and 16.  Switch functions are easily controlled through the programmable graphical user interface.


[Enlarge]

System Requirements:

  • Windows 2000 or Windows XP
  • Microsoft Internet Explorer 5.01 or later.
  • Microsoft .NET Framework version 1.1
  • National Instruments VISA library or Agilent Technologies IO Libaries Version M or later.
USB versions: 2.0 and 1.1 Full speed
USB connection: USB "B" type connector
USB current consumption: 350mA maximum
Switched voltage and current:
100VAC maximum
100VDC maximum
0.5 Amps maximum
Switched power:
10W maximum
Carrying Current: 1.5A maximum
Total Channel Resistance: 0.3 Ohms initial, typical
(Measured from the front panel connector to the rear panel Analog Bus)
Screw terminal wire: AWG 28 – 16
Screw terminal torque: 0.22 – 0.25 Nm
Documentation & Downloads:
Printable Datasheet (coming soon)
Manuals & Application Notes
Download GUI software
Cables and Connections




[Enlarge]


P/N Price

Description
1813A EUR 625.00 USB controlled 13 Channel Multiplexer.
Includes 1813A Module, USB Cable, Analog Bus Cable, Software & Documentation
