1848A USB Controlled 4 x 8 Matrix Switch

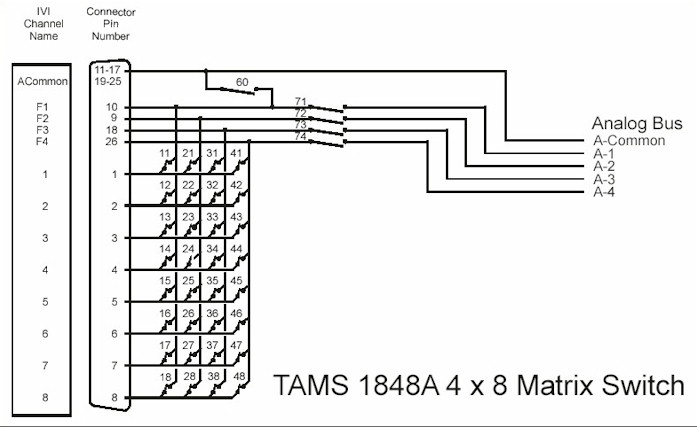

The 4 x 8 matrix allows connection of any row (1 through 8) with any column (1 through 4). The matrix consists of 32 SPST relays (labeled 11 through 18, 21 through 28, 31 through 38, and 41 through 48) forming a 4 by 8 matrix switch, where any of the inputs 1 through 8 can be connected with any of the four “Analog Bus” lines. Five additional relays allow connect/disconnect of the matrix from the Analog Bus, as well as grounding selected terminals to the Analog Common to enable single ended measurements.  Large matrixes can be easily built by connecting the “Analog Bus” terminals together with short jumper cables.

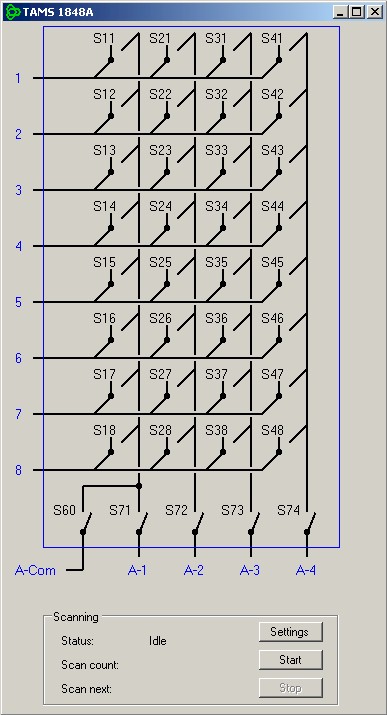

[Enlarge]

System Requirements:

  • Windows 2000 or Windows XP
  • Microsoft Internet Explorer 5.01 or later.
  • Microsoft .NET Framework version 1.1
  • National Instruments VISA library or Agilent Technologies IO Libaries Version M or later.
USB versions: 2.0 and 1.1 Full speed
USB connection: USB "B" type connector
USB current consumption: 350mA maximum
Switched voltage and current:
100VAC maximum
100VDC maximum
0.5 Amps maximum
Carrying Current
1.5A Maximum
Switched power:
10W maximum
Total Channel Resistance: 0.3 Ohms initial, typical
(Measured from the front panel connector to the rear panel Analog Bus)
Screw terminal wire: AWG 28 – 16
Screw terminal torque: 0.22 – 0.25 Nm
Documentation & Downloads:
Printable Datasheet (coming soon)
Manuals & Application Notes
Download GUI software

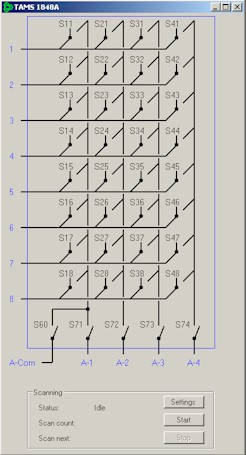

[Enlarge]


P/N Price

Description
1848A EUR 665.00 USB controlled 4 x 8 Matrix Switch
Includes 1848A Module, USB Cable, Analog Bus Cable, Software & Documentation
