How do I ...? > Example programs > Example 2

DPlot_example2.prg

In this example we show how to create real-time plots, e.g. the curves will be updated dynamically in real-time. The update interval is customizable using the variable Scr_update in SUB Dplot_realtime. See also è How do I create a real-time plot for more detailed information.

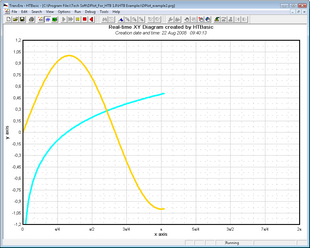

Example screenshot:

clip0042

DPlot_example2.prg – Realtime diagram

Please note:
The screen update interval depends on the speed and screen resolution of your computer as well as the write speed of the storage subsystem where your local settings are stored. If your computer or your network connection are very slow the screen update may be stagnant.
