! open a wav file "tada.wav" from Windows media directory

Doc_num=FNDplot_doc_open(FNDplot_getsfpath$("CSIDL_WINDOWS","Media",0)&"\tada.wav")

Dummy=FNDplot_send_cmd("[Color(1,0,0,255)]") ! curve 1 = blue

Dummy=FNDplot_send_cmd("[SelectCurve(1)]")    ! select Curve 1 = left channel

Dummy=FNDplot_send_cmd("[FFT()]")             ! the FFT command creates a *new* document

! get the document number of the newly created document as a reference

Doc_num2=VAL(FNDplot_request$("","LastNewDocNum"))

!

! activate this document for subsequent commands

Dummy=FNDplot_doc_activ(Doc_num2)

Dummy=FNDplot_send_cmd("[Color(1,255,0,0)]") ! FFT curve = red

! show the diagram, 100% screen size

CALL Dplot_show(Doc_num2)

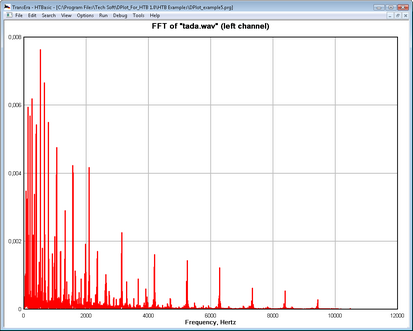

.. which should give the following result*:

! activate the document containing the wav data for subsequent commands

Dummy=FNDplot_doc_activ(Doc_num)

Dummy=FNDplot_send_cmd("[SelectCurve(1)]")  ! select Curve 1 = left channel

! make histogram of this curve (a new document will be created)

Dummy=FNDplot_send_cmd("[Histogram(0.020)]")

! get the document number of the newly created document as a reference

Doc_num3=VAL(FNDplot_request$("","LastNewDocNum"))

!

! activate this document for subsequent commands

Dummy=FNDplot_doc_activ(Doc_num3)

Dummy=FNDplot_send_cmd("[Color(1,0,255,0)]") ! histogram curve = green

Dummy=FNDplot_send_cmd("[BarChartStyle(0x00000808)]") ! shaded bars, percentage labels

Dummy=FNDplot_send_cmd("[FillStyle(1,1)]")

! show the diagram, 100% screen size

CALL Dplot_show(Doc_num3)

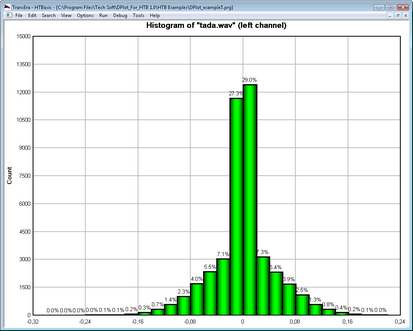

.. which should give the following result*:

Dummy=FNDplot_doc_close(Doc_num)     ! close the document 1

Dummy=FNDplot_doc_close(Doc_num2)     ! close the document 2

Dummy=FNDplot_doc_close(Doc_num3)     ! close the document 3
