TAMS E2085M SRM/UX Server Software for HP-UX and Red Hat Enterprise Linux
|
|

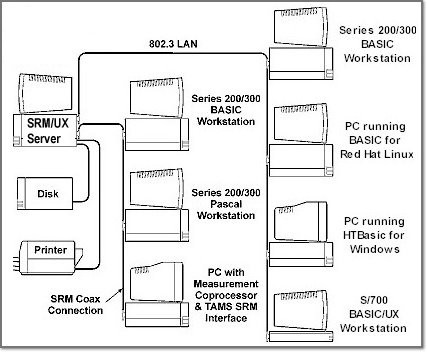

| SRM/UX provides networking connectivity for HP Series 200/300 BASIC workstations, Pascal workstations, PCs running BASIC for Linux, and PCs running BASIC for Windows (with TAMS SRM/UX DLL) can all be full SRM/UX clients. It provides file and peripheral sharing, and the server can act as a gateway to provide access to the enterprise network. The HP-UX or Linux host does not need to be a dedicated SRM/UX server. It can also be utilized for other computing tasks.
|
This latest release of SRM/UX expands the Linux kernels supported, while continuing to offer all the functionality of SRM and previous versions of SRM/UX.
SRM/UX is supported on almost all HP-UX Workstations or Servers. (Series 300, 400, 700, 800) and Intel based servers running specific kernels of Red Hat Enterprise Linux. All PCs support LAN connections, and Series 300 can support LAN and SRM wire. SRM gateways can be established to connect SRM systems to SRM/UX networks. The E2087 SRM/UX DLL allows PCs running HTBasic for Windows to be full SRM/UX clients. Contact Tech Soft for additional configuration details.
|
| Compatibility
|
| - Red Hat Enterprise Linux
- HP-UX 9.10, HP-UX 10.20, HP-UX 11i
|
| SRM/UX LAN Clients
|
| - BASIC/UX
- HTBasic for Windows
- HP BASIC for Windows
- Basic for Linux
- BASIC/WS
- Pascal/WS
|
| Easy configuration
|
| - Once the SRM/UX system is running, clients
can be added or removed without shutting
the system down.
- Use symbolic User- and Group-IDs
in SRM/UX configuration file
|
| Integration into existing systems
|
| - Complete software compatibility with most
existing SRM applications.
|
|
|
SRM/UX Eigenschaften im Detail
|
| File services for BASIC- and PASCAL Workstations
|
| Transparent file sharing for your BASIC and PASCAL Workstations. No special commands are necessary. You use the same commands for accessing files, whether on the SRM/UX server or on a local disk drive. HP BASIC, BASIC/WS and HP BASIC/UX can share BDAT, ASCII, and PROG files. You can manage shared data files centrally, reducing revision control problems.
|
| Boot support
|
| Supports diskless booting of HP BASIC or PASCAL Workstation clients from a central SRM/UX server with HP BASIC/WS and Pascal/WS client connections over SRM or LAN interfaces.
|
| VIPER-Card Support
|
| Ability to integrate 200 and 300 series HP Workstations and Measurement Coprocessors into standard LAN systems. Transparent sharing of files among themselves and with the server, plus the ability to share data with other computers on the network which communicate via standard LAN services.
|
| Usage of existing systems
|
| Printers and plotters connected to the SRM/UX server are available to the client computers through normal HP BASIC/WS commands.
|
| Configuration, System administration
|
| Easy configuration. Once the SRM/UX system is running, clients can be added or removed without shutting the system down. System Administration of SRM/UX is similar to that of other HP-UX applications, such as the line printer spooler. Backups and system administration tasks can be done centrally via regular HP-UX housekeeping procedures.
|
|
Client Configuration Information
| Remote File Access
| Remote Booting
|
SRM Wiring
| All Series 200/300 BASIC and Pascal
| Fully supported
|
LAN Connection
| BASIC 6.1 or later; Pascal 3.25 or later
| Series 200/300 with Boot ROM B and later or TAMS WLZ LAN card
|
Measurement Coprocessor
| ALL supported BASIC on SRM. BASIC 6.1 or later on LAN
| Measurement Coprocessor must boot from local PC.
|
Ordering Information
Order code
| Description
|
E2085K
| SRM/UX Server Software (Lizenz and CD-ROM)
|
E2085K-1000
| Upgrade from earlier SRM/UX Version to Version "M"
ATTENTION: Proof of ownership required !
|
E2087
| SRM/UX DLL Client Extension for HTBasic for Windows
|
